What are the important parts of a Hammar self loading container trailer?
1. Wireless remote control. equipped with imported remote control, easy to operate.
2. Chains. They are attached from the top of the cranes to the corner corners at the base of the container (s) during lifting operations. There is a special link device that, when placed between two 20-foot containers, allows the user to lock two 20-foot (2 TEU) containers together, which allows the container-lifter to lift them up as if they were a 40-foot container. feet.
3. Chassis. It supports the weight of the container when it is loaded, it also supports the cranes.

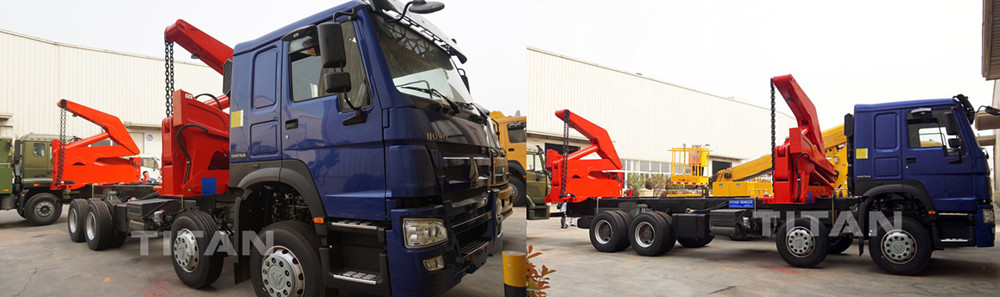

Details of 20/40Ft Container Side Lifter
4. Crane Lift. Hydraulically powered cranes lift the container (from the ground, the loading dock, another vehicle, the rail car or from the top of another container placed on the ground or other location) into and out of the chassis. These cranes are placed in the upper part of the side chassis and can usually be moved along the chassis moving with hydraulic cylinders or hydraulic motors to load different lengths of containers.
5. Boom slide system. The 20ft or 40ft container can be loaded and unloaded through the sliding of the front and rear cranes, which has a wide range of applications and good versatility, greatly expanding the use of the equipment.
6. Trailer Stabilizer Legs. These are equipped with hydraulic legs that are necessary to allow the lifting of loads of up to 44 tons without tilting the vehicle. These can be adjusted to help the operation in a level less terrain and facilitate greater safety margins and load limits when stacking containers.
7. WABCO braking system reduces best Hammar side lifter truck Sacramento braking distance.

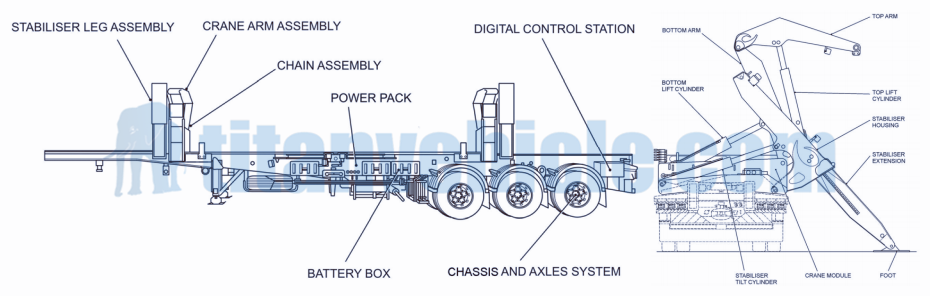

General Layout of 20Ft Side Loader Truck
Sidelifter package and shipping.
Hammar has to admit that the packaging and delivery are essential steps before container lifter were sent to the hand of our customers. We have professional staff to make packages. All of them were trained constantly. Please notice that the Hammar Container lifter truck covers poncho to prevent the damp condition.
The side lift container transport trailer is generally delivered by bulk carriers or ro-ro ships. Before delivery, we spray the entire vehicle with wax, and important parts such as the boom are covered with a layer of rain cloth. If ports are without bulk carriers, we will ship by container.

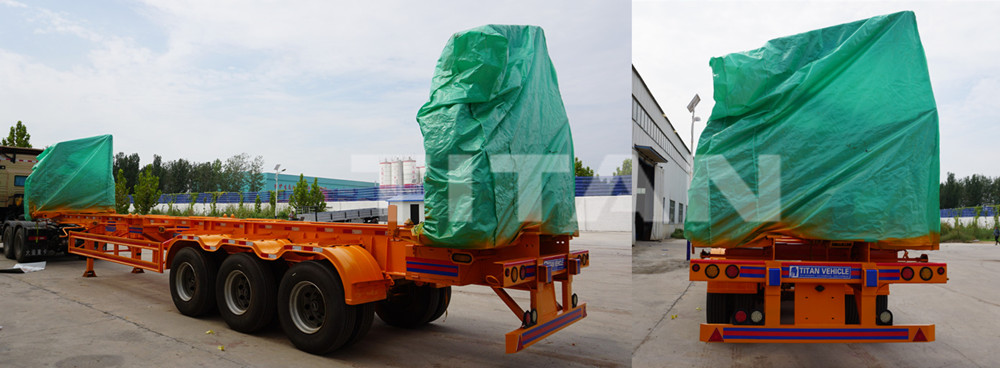

40Ton side loader delivery truck trailer package
Common faults and maintenance of the Hammar side lifters
1. hydraulic system pressure is too high or too low; oil pump is damaged, leak oil---check or replace oil pump; multichannel change valve is damaged---remove faults; oil level in the tank is too low---add oil to the proper position; suction tube leak air---check or replace the suction tube; oil filter is blocked off---clean or replace filter core; oil is used for a long time, oil viscosity is too low---replace the hydraulic oil
2. cylinder leak oil; terminal cover seals wore/piston seals wore---Replace seals
3. cylinder is retracted automatically with the load raised; load-holding valve get failure---clean or replace valve lock; cylinder piston seals to be damaged---replace seals

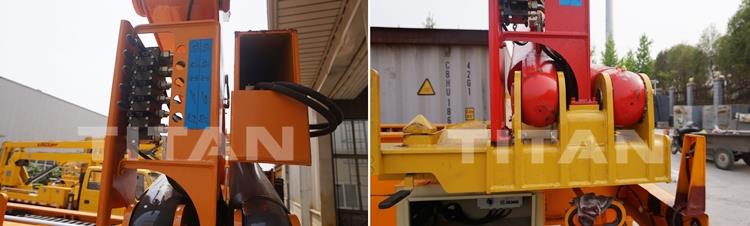

20Ft Hammar Side Loader Truck Trailer for Sale Price
4. abnormal warm-up; inhale air, the oil seal is bad---check and replace oil seals; oil level in the tank is too low---add oil to the proper position; oil pump is damaged, leak oil---check or replace oil pump; the system is stooped---check and remove the stopper
5. valve core is not made recovery; has dirt between valve core and body---clean valve lever and body; recovery spring to be damaged---replace spring; valve lever is operated unsmoothly---check operation system; coupling bolts are too tight---tighten the connection bolt
6. Pump not output oil stop running immediately, otherwise pump may be damaged or flow is not enough; oil pump doesn’t work---check or replace engine connected disc; suction tube or oil filter is blocked off---remove the jamming; oil viscosity is too high---replace hydraulic oil; oil level in the tank is too low---add oil to the proper position; oil pump inside to be damaged---check or replace parts; internal seals to be damaged---replace seals
1. Wireless remote control. equipped with imported remote control, easy to operate.
2. Chains. They are attached from the top of the cranes to the corner corners at the base of the container (s) during lifting operations. There is a special link device that, when placed between two 20-foot containers, allows the user to lock two 20-foot (2 TEU) containers together, which allows the container-lifter to lift them up as if they were a 40-foot container. feet.
3. Chassis. It supports the weight of the container when it is loaded, it also supports the cranes.
Details of 20/40Ft Container Side Lifter4. Crane Lift. Hydraulically powered cranes lift the container (from the ground, the loading dock, another vehicle, the rail car or from the top of another container placed on the ground or other location) into and out of the chassis. These cranes are placed in the upper part of the side chassis and can usually be moved along the chassis moving with hydraulic cylinders or hydraulic motors to load different lengths of containers.
5. Boom slide system. The 20ft or 40ft container can be loaded and unloaded through the sliding of the front and rear cranes, which has a wide range of applications and good versatility, greatly expanding the use of the equipment.
6. Trailer Stabilizer Legs. These are equipped with hydraulic legs that are necessary to allow the lifting of loads of up to 44 tons without tilting the vehicle. These can be adjusted to help the operation in a level less terrain and facilitate greater safety margins and load limits when stacking containers.
7. WABCO braking system reduces best Hammar side lifter truck Sacramento braking distance.
General Layout of 20Ft Side Loader Truck
Sidelifter package and shipping.
Hammar has to admit that the packaging and delivery are essential steps before container lifter were sent to the hand of our customers. We have professional staff to make packages. All of them were trained constantly. Please notice that the Hammar Container lifter truck covers poncho to prevent the damp condition.
The side lift container transport trailer is generally delivered by bulk carriers or ro-ro ships. Before delivery, we spray the entire vehicle with wax, and important parts such as the boom are covered with a layer of rain cloth. If ports are without bulk carriers, we will ship by container.
40Ton side loader delivery truck trailer packageCommon faults and maintenance of the Hammar side lifters
1. hydraulic system pressure is too high or too low; oil pump is damaged, leak oil---check or replace oil pump; multichannel change valve is damaged---remove faults; oil level in the tank is too low---add oil to the proper position; suction tube leak air---check or replace the suction tube; oil filter is blocked off---clean or replace filter core; oil is used for a long time, oil viscosity is too low---replace the hydraulic oil
2. cylinder leak oil; terminal cover seals wore/piston seals wore---Replace seals
3. cylinder is retracted automatically with the load raised; load-holding valve get failure---clean or replace valve lock; cylinder piston seals to be damaged---replace seals
20Ft Hammar Side Loader Truck Trailer for Sale Price
4. abnormal warm-up; inhale air, the oil seal is bad---check and replace oil seals; oil level in the tank is too low---add oil to the proper position; oil pump is damaged, leak oil---check or replace oil pump; the system is stooped---check and remove the stopper
5. valve core is not made recovery; has dirt between valve core and body---clean valve lever and body; recovery spring to be damaged---replace spring; valve lever is operated unsmoothly---check operation system; coupling bolts are too tight---tighten the connection bolt
6. Pump not output oil stop running immediately, otherwise pump may be damaged or flow is not enough; oil pump doesn’t work---check or replace engine connected disc; suction tube or oil filter is blocked off---remove the jamming; oil viscosity is too high---replace hydraulic oil; oil level in the tank is too low---add oil to the proper position; oil pump inside to be damaged---check or replace parts; internal seals to be damaged---replace seals
