3 Axle 40ft Skeleton Trailer for Sale in Dominica



3 Axle 40ft Skeleton Trailer for Sale in Dominica SANTO DOMINGO

Dominica customer bought a 3 axle 40ft skeleton trailer. The customer previously bought a 3 axle 40ft skeleton trailer under the recommendation of a friend. After using it for a year, and finding that the quality was good, he contacted the sales staff and said that he wanted to customize a skeleton trailer again.

According to customer needs, the skeleton trailer is 3 axle 40 foot, and the configuration of the 3 axle 40ft skeleton trailer is also upgraded from the last time. After the product was completed a few days ago, the paint color has been determined, and the vehicle is produced and can now be shipped. After completion, we provide customers with completed videos and pictures to ensure that customers receive the quality semi trailer.


3 Axle 40ft Skeleton Trailer for Sale in Dominica SANTO DOMINGO

There are five common types of combo chassis trailers: 20 ft container trailer for sale, tri axle 40ft skeletal trailers meaning, 45ft container chassis, terminal trailer and super link trailer.

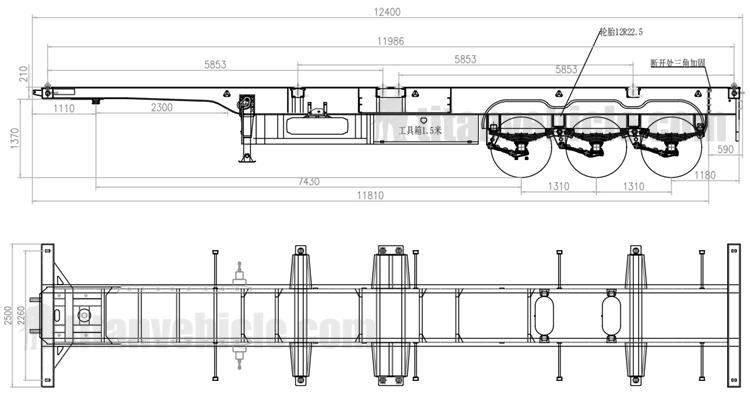

TITAN can customize trailer skeleton dimensions and height from the ground, just need to tell us your requirements: 3 axle 40ft skeleton trailer for sale near me specs, tires, parts.

Locks, 3 axle 40ft skeleton trailer is equipped with 12 sets of locks, which can be used to transport a 3 axle 40ft skeleton trailer or two 20 foot containers, or a 20 foot container alone.


3 Axle 40ft Skeleton Trailer for Sale in Dominica SANTO DOMINGO

The 3 axle 40ft skeleton trailer is a kind of container transport semi-trailer frame and the other is the flatbed type.

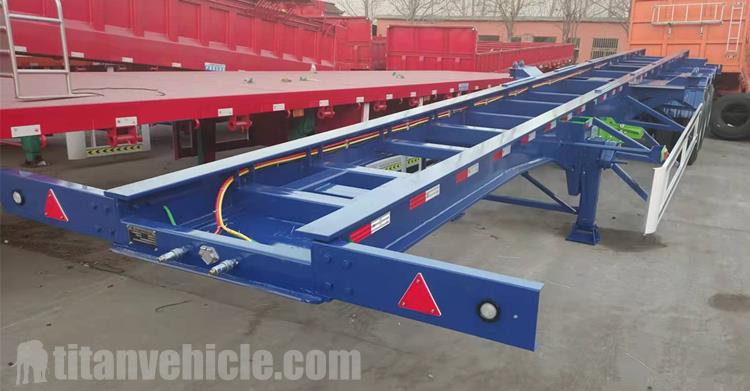

3 Axle 40ft skeleton trailer is welded by longitudinal beams, cross beams and front and rear end beams. The longitudinal beams are made of steel plate 16Mn submerged arc welding into an I-shape (the main dimensions are 450, 500), and the beams are stamped into grooves with steel plates.

The end beam is a welded rectangular section. An integral long beam is installed at the middle container locking device to improve the carrying capacity of the container locking device.

The difference between the flatbed type and the 3 axle 40ft skeleton trailer is that the flatbed type has an additional frame and a patterned floor. The frame of the wooden container transport semi-trailer is shot blasted. The entire frame is assembled and welded on a dedicated positioning table. It has a reasonable structure, high strength and beautiful appearance.


3 Axle 40ft Skeleton Trailer for Sale in Dominica SANTO DOMINGO

A container compaction device is installed on the frame, which can load two standard containers of 40 feet and 20 feet. The four container shrinking devices at the front and rear ends are of a fixed structure, and the middle container shrinking device is a concealable structure.

When loading containers, the intermediate container locking device can be lowered below the level of the cargo platform as required. Its function is to support the ground and bear the front load of the 3 axle 40ft skeleton trailer when the traction device is disengaged from the trailer.

There are two types of supporting devices, single-acting type and linkage-type, which are mainly composed of a supporting plate, a screw drive mechanism, a reduction box, and a joystick. There are three types of suspension devices: single-axle suspension and double-axle suspension and three-axle suspension.

The semi-trailer is equipped with two spare tire frames, which are installed on the left and right sides of the trailer frame respectively, and are equipped with a spare tire lifter.


3 Axle 40ft Skeleton Trailer for Sale in Dominica SANTO DOMINGO
