40 Foot 3 Axles Flatbed Tractor Trailer will be shipped to Ghana



40ft tractor flatbed trailer

40 Foot 3 Axles Flatbed Tractor Trailer for Sale in Ghana



It is the first time for Ghana customer to buy a semi trailer in our company TITAN Vehicle. The customer learned about our company through the introduction of a friend. For the needs of transporting containers, a Ghana customer needs to buy several flatbed tractor trailers. Our sales recommended suitable flatbed  tractor trailer for Ghana customer. For flatbed trailer products, Ghana customer also have some special customization needs. After communicating with the factory technicians, the salesperson specially customized this 40 foot 3 axles flatbed tractor trailer for the customer. Now, all three flatbed tractor trailers have been produced. The Ghana customer chose to use containers to transport these flatbed tractor trailer, which can prevent bumps very well. Within a week, these 40 foot 3 axles flatbed tractor trailer will be delivered to the port of Ghana. , Accara Ghana customer can also be put into use very soon.

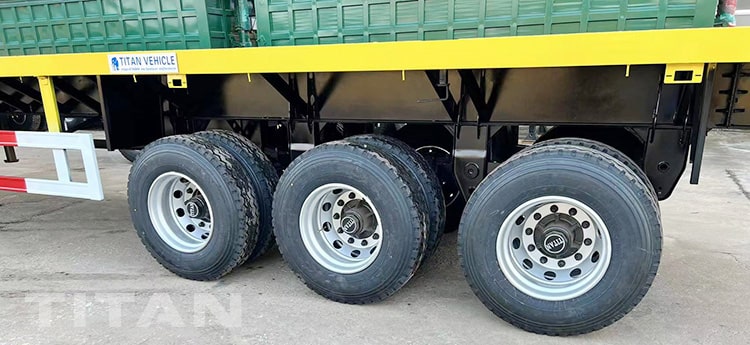

40 Foot 3 axles Flatbed tractor trailer for Sale

40 Foot 3 Axles Flatbed Tractor Trailer for Sale in Ghana



Introduction to the main parts of the flatbed tractor trailer

Suspension system (rigid): transmits load and absorbs shock.

Axle and hub system: Single, two and three axle assemblies with the same structure are installed under the suspension system. The tire and rim assembly are fastened to the hub with tire bolts to support the weight of the vehicle.

Landing gear lifting mechanism: In order to make the flatbed tractor trailer park reliably after it is separated from the tractor, there are two linkage or single-acting outriggers at the front end of the frame. It is composed of a screw drive mechanism, a bevel gear drive mechanism, a two-speed reduction box, a transmission rod, and an operating handle.

When the handle is pushed in, it can be raised and lowered at a high speed by turning it, and when the handle is pulled out, it can be raised and lowered at a low speed by turning it. When the outriggers touch the ground, only lower gears can be used to raise and lower.

King pin and guide plate/frame: The lower part of the front end of the frame has a traction pin and a king pin connecting plate connected to the saddle of the tractor. The king pin is mainly used to transmit the traction force of the tractor and the braking force during braking.



40 Foot 3 axles Flatbed tractor trailer for Sale

40 Foot 3 Axles Flatbed Tractor Trailer for Sale in Ghana



Flatbed tractor trailer inspection and maintenance

Tractor flatbed trailer need to do basic inspection and maintenance. Doing the inspection and maintenance work can avoid unnecessary safety hazards and reduce the cost of use.

1. Axle suspension:

Whether there are cracks in the welding seam of the suspension support;

The suspension support and tire bolts are not loose;

Ensure that the U-bolt of the axle is not loose;

2. support device: The parts of the support device are intact and can be used for normal lifting and shrinking



40 Foot 3 axles Flatbed tractor trailer for Sale

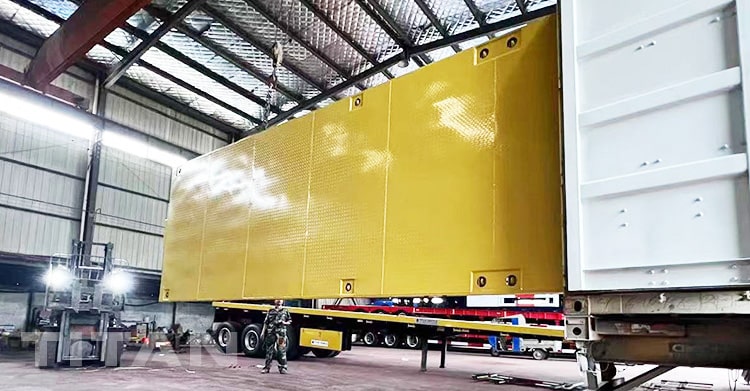

Package of the 40 Foot 3 Axles Flatbed Tractor Trailer



3. Tires: Whether there are cuts, scratches, tire wear and tire pressure is normal;

4.Brake system: Brake line system level brake drum for damage, wear or cracks; make sure braking is correct

5.Others: No loose fasteners, no cracks in welds, no obvious wear and aging of rubber parts
