40 Ton 2 Axle Low Loader Trailer will be sent to Philippines

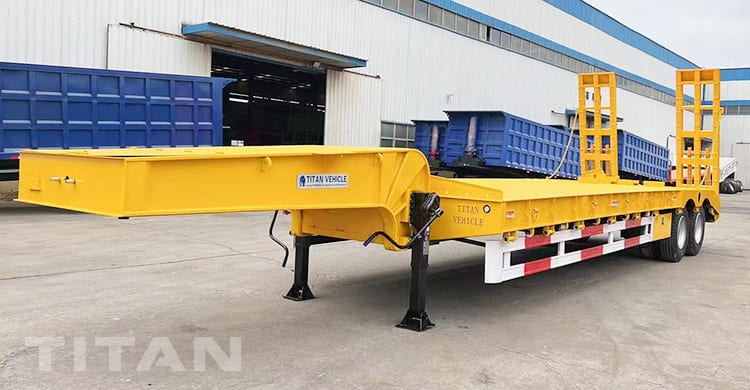

40 Ton 2 Axle Low Loader Trailer for Sale in Philippines


Philippines customer has cooperated with our company since 2020, and are old customers TITAN have been cooperating with. The customer have been buying semi-trailers from TITAN since they purchased their first flatbed trailer product from TITAN.

This time, the Philippines customer needed a 2 axle low loader, and the customer first thought of TITAN. The Philippines customer were deeply impressed by the good cooperation in the previous few times, so after explaining his needs, the customer paid our company directly, which reflects the customer's trust in our team.

Amor, the sales manager, provides professional advice to customers. With the hard work of the factory, the 40 ton 2 axle low loader for sale have all been produced, and they are ready to be shipped to the port of Harare.



40 Ton 2 Axle Low Loader Trailer for Sale in Philippines


How the special equipment load on the 2 axle low loader?

There are two ways that allow you to load equipment onto a low loader trailer for sale.

1)Front check-in. The design of the 2 axle low loader provides for the “uncoupling” of the gooseneck attached to the fifth wheel of the tractor from the loading platform. The platform of the 2 axle low loader is lowered to the ground, which provides a minimum angle of entry.

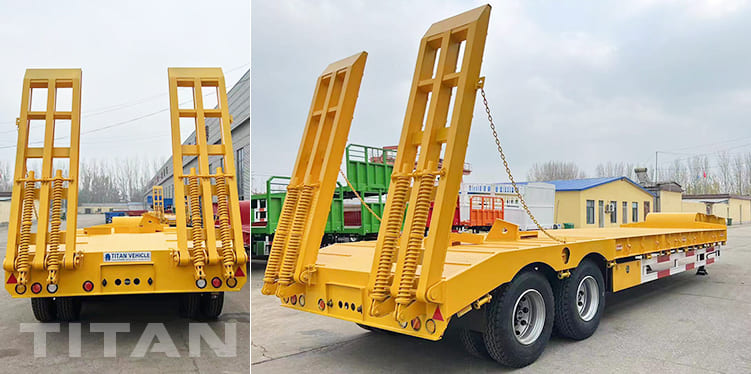

2)Rear entry of equipment on ladders. The classic scheme of a low loader trailer for sale, in which the loading platform is equipped with ladders. There are 3 types of ladders: hydralic ladders, spring ladders, folding ladders



40 Ton 2 Axle Low Loader Trailer for Sale in Philippines


The girders of the low loader trailer for sale are made of Q460C high-strength manganese steel. This steel has good toughness, its bearing capacity is 5 times that of a trailer made of Q345 steel, and its service life is more than ten years.

The top of the 2 axle low loader for sale is 20mm thick and 200mm wide, and the bottom is 20mm thick and 200mm wide. The middle height is 550mm and 14mm thick. The low bed truck for sale gooseneck has a downward pressure design, which can effectively prevent the low bed truck trailer from tilting its head when it is loaded, and it is easier to climb the slope.

The side beams of the2 axle low loader for sale are made of T700 high-strength steel, and the side beams of the low bed semi trailer are 300mm high, 140mm wide and 8mm thick "H" design. The bearing capacity is twice that of other steels, and it will not deform for 10 years.



40 Ton 2 Axle Low Loader Trailer for Sale in Philippines

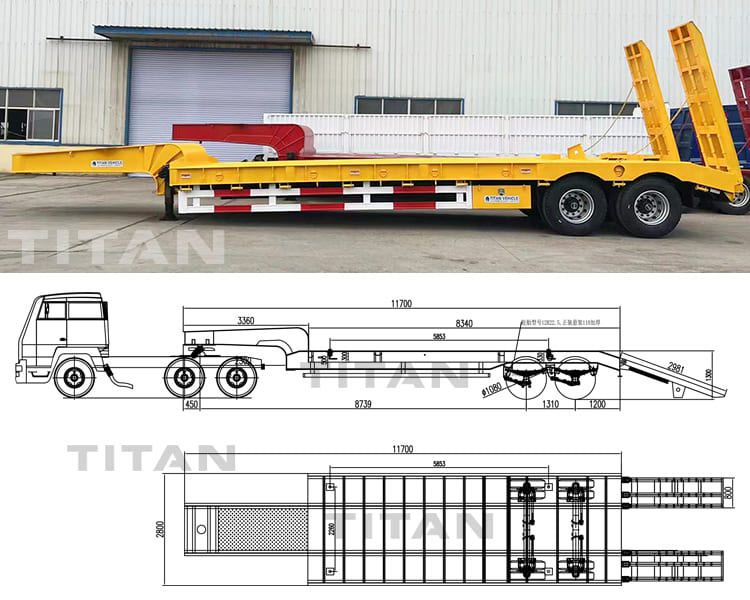

In the model range of the 2 axle low loader for sale, the loading height of the trailer is no more than 0.9 m. This allows you to transport goods and equipment up to 3.5m without exceeding the current 4m height limit, which is important when driving through tunnels, under bridges or power lines.

This 40 ton low loader trailer ensures the safety of transportation, enables the optimal selection of the center of gravity of the goods and ensures their stability during movement.
