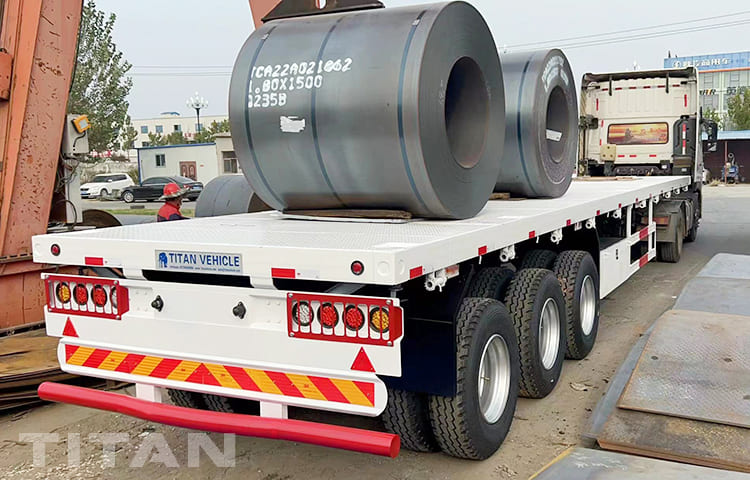

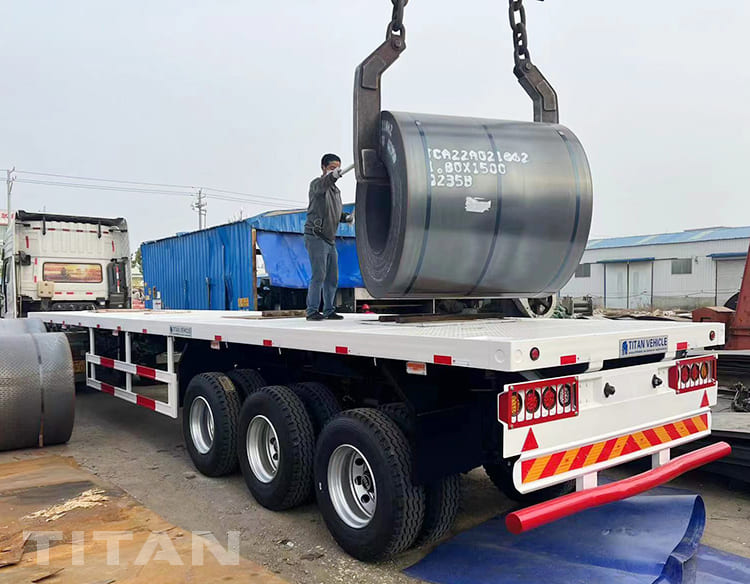

40Ft Flatbed Tri Axle Trailer is carrying out Load Capacity Test




40Ft Flatbed Tri Axle Trailer for Sale in Sierra Leone


It is the first time for a Sierra Leonea customer to buy a flatbed tri axle trailer from TITAN. As a hot-selling product of TITAN, more and more African customers have come to buy this 40ft flatbed tri axle trailer.

Sierra Leonea customer found TITAN through internet search and left an inquiry on our official website. The customer urgently needs 10 flatbed tri axle trailer. Due to the high quality and good quality of TITAN's tri axle flatbed, the customer quickly paid the deposit. Now, These 10 tri axle flatbed have been produced and are being tested for carrying capacity. This flatbed tri axle trailer can easily carry 75 tons of heavy objects



40Ft Flatbed Tri Axle Trailer for Sale in Sierra Leone


TITAN has specialized in producing flatbed tri axle trailer for decades, we have the most advanced technology to produce the tri axle flatbed. In recent years, the flatbed tri axle trailers are exported to Africa more and more often.

TITAN has different models of flatbed tri axle trailer for sale, such as 40ft, 20ft ,48ft, 53ft etc, with different number of axles, like 2 axle, 3 axle, 4 axle. A standard 40ft flatbed tri axle trailer loading capacuty is no more than 75 Tonne.

Advantages of the tri axle flatbed:

functionality and simple design;

the ability to quickly carry out loading and unloading;

inexpensive main10ance;

possibility of simultaneous transportation of different cargoes;




40Ft Flatbed Tri Axle Trailer for Sale in Sierra Leone

Details of producing 40ft flatbed

1.main beam

TITAN adopts the Low carbon high strength alloy steel Q345 to make the main beam of tri axle flatbed, it has a higher carry capacity and service life of more than 10 years.

TITAN use automatic submerged arc welding process to weld the main beam. There is no interface between the upper, middle and lower plates of the beam, so the flatbed tri axle trailer can ensure the integrity of the main beam and make the beam more solid and durable.

2. through beam

The 40ft flatbed has 6 beams under the floor plate, effectively ensure the flatness of the floor plate

3. side beam

The thickness of the side beam we made is 160mm, 100mm channel for through beam, and all of the through beam are supported by the Inclined support frame, and the distance of these frame no more than 500mm, which can ensure the trailer not easy to deform.



40Ft Flatbed Tri Axle Trailer for Sale in Sierra Leone


4. gooseneck double plat

The bottom plate of flatbed tri axle trailer for sale reinforced double plate at the gooseneck part of the main beam, and double plate for the middle beam, the deformation range of the trailer during heavy load is small, which is better for use

5. floor plate

The floor plate is the 3 mm and it’s diamond plate, It is thicker than the 2.5mm or 2mm floor plate of other factories. The floor plate of the 40ft flatbed tri axle trailer for sale is strong and durable, and is not easy to deform
