Multi Axle Modular Trailer is ready to ship to Philippines




Multi Axle Modular Trailers for Sale in Philippines



A Philippines customer ordered an axis product this time. This kind of multi axle trailer product requires a high level of craftsmanship, and it is necessary to find a qualified supplier to do it. Thanks to the Philippines customer for choosing TITAN.

After the customer communicated with the salesman, he expressed his needs, and our salesman provided the customer with a perfect production plan. The customer was very satisfied and paid the deposit after one month. Now, this multi axle modular trailer is about to complete production.

Multi axle trailer refer to various special trailers or semi-trailers, which are usually used to transport large and heavy goods, and are not easy to disassemble for transportation.



Multi Axle Modular Trailers for Sale in Philippines

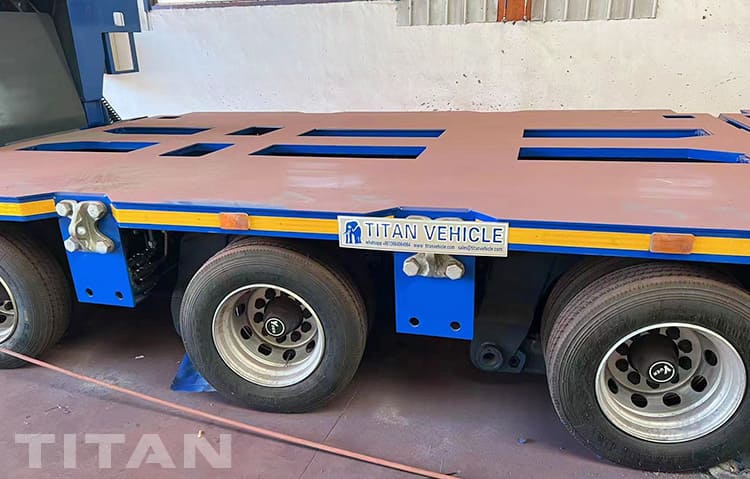

The main components of multi axle modular trailer

1) Main beam of multi axle trailer : welded with high-strength steel into an I-shaped shape, and the lower part of the main beam at both ends of the module is provided with connecting ear plates.

2) Secondary beam of multi axle trailer: welded with high-strength steel to form a load-bearing structural frame with the main beam.

3) Beam of multi axle trailers for sale: connect the main beam and the auxiliary beam.

4) Diagonal support: support the main beam and auxiliary beam.

5) End beam of multi axle trailers for sale: Steering end beam, connecting end beam and holding beam.

6) Suspension system: Supported on the sub-beam, it plays the role of supporting and connecting the axle. The suspension system includes the running gear.

7) Steering system: transfer steering.



Multi Axle Modular Trailers for Sale in Philippines



8) Hydraulic system of multi axle trailers for sale: provide and transmit hydraulic power for suspension and steering.

9) Brake system: including service brake and parking brake, composed of air circuit, control system and actuator.

10) Connecting devices of modular trailers for sale: connecting pins, connecting bolts, connecting blocks, etc.

11) Auxiliary equipment of multi axle trailer: power unit, gooseneck, drawbar, control box, etc.

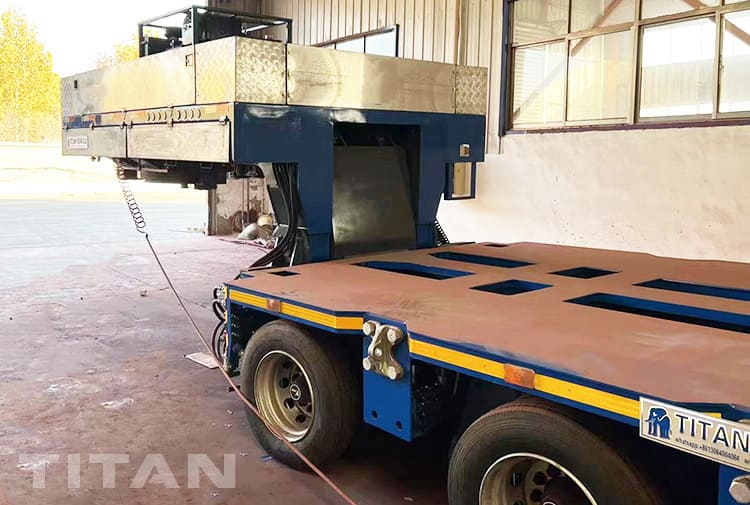

Gooseneck Features

The power gooseneck of multi axle modular trailer is the connecting device for connecting the axle car and the tractor to form a semi-trailer axle. The multi axle modular trailer has the advantages of a semi-trailer, and the power gooseneck has its own characteristics.



Multi Axle Modular Trailers for Sale in Philippines



Advantages: The load of the multi axle modular trailer for sale can be distributed to the saddle of the tractor (five-wheel load), and no tractor counterweight is required. The swing of the driving trailer is small, which can increase the speed of the vehicle.

Features: With ballast, it can realize the change of the load pressed on the saddle. With steering, it can realize automatic steering driven by tractor and hydraulic power control steering.
